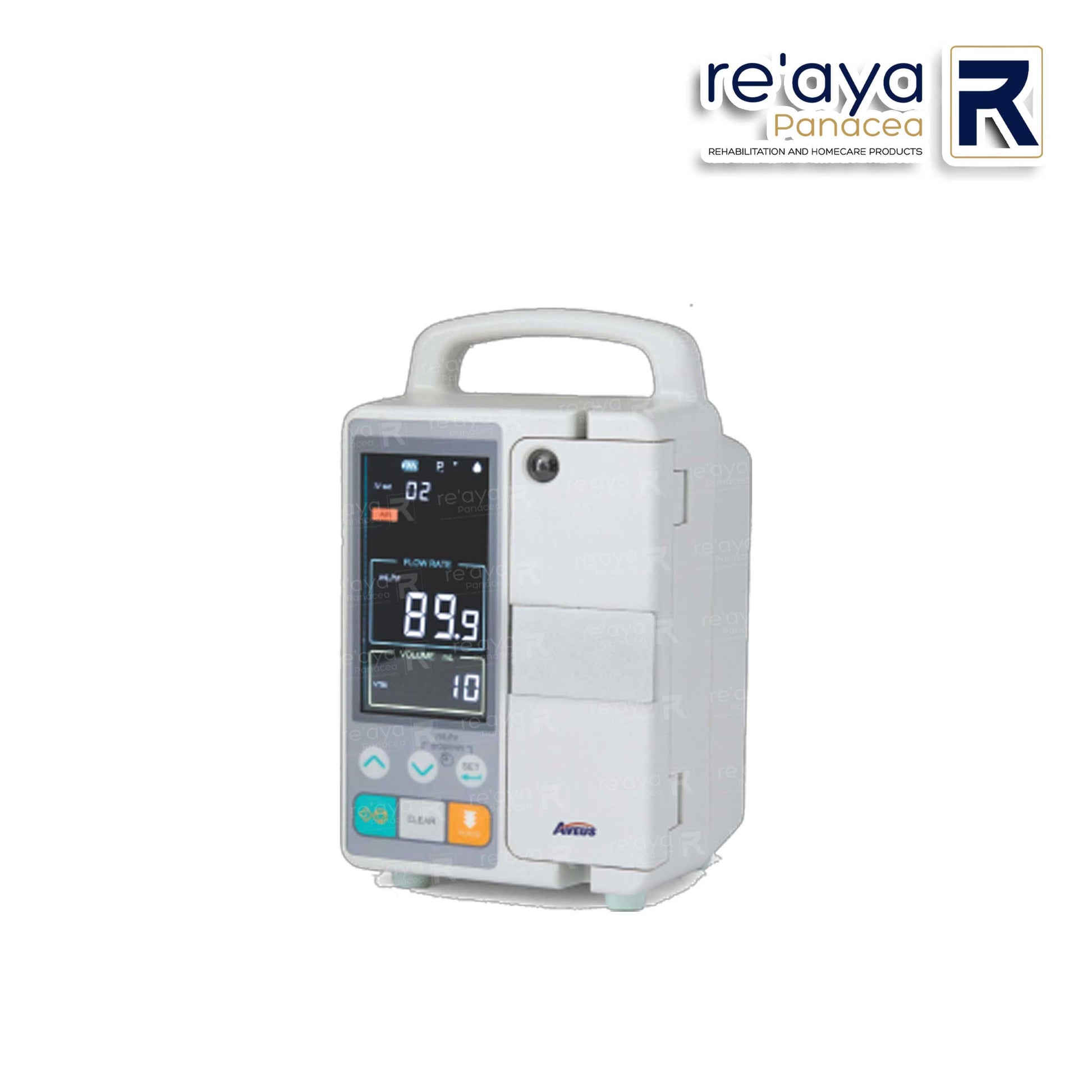

INFUSION PUMP, AV-200X

The AV-200X is a precise infusion pump with a curvilinear peristaltic mechanism.It works with all standard IV sets and allows flow rates from 0.1 to 1500 ml/h, adjustable in fine increments.It provides real-time data on infused volume, bolus rate, bolus volume, and KVO rate.Users can change flow rates without stopping the pump.Bolus delivery and purge functions help manage fluid administration smoothly.Automatic power switching and a key lock enhance safety and usability.

• Real-time monitoring of infused volume, bolus rate, bolus volume, and KVO rate
• Adjustable flow rate without stopping the pump
• Bolus volume adjustable from 1 to 20 ml
• Purge function to clear the line
• Mute button and system memory for ease of use
• Key locker to prevent unauthorized changes
• Wireless management option (optional)

• Power supply: AC 110/230 V, 50-60 Hz, 20 VA
• Battery: Rechargeable 9.6 V, 1.6 Ah, lasts approx. 5 hours at 30 ml/h
• Size: 174 x 126 x 215 mm
• Weight: 2.5 kg
• Operating temperature: 10°C to 40°C
• Relative humidity: 30% to 75%
• Atmospheric pressure: 700 to 1060 hPa
• Safety classification: Class CF

• Adjustable occlusion sensitivity (high, medium, low)
• Ultrasonic air-in-line detection
• Alarms for occlusion, air-in-line, door open, program end, low battery, power off, motor malfunction, system malfunction, and reminders
