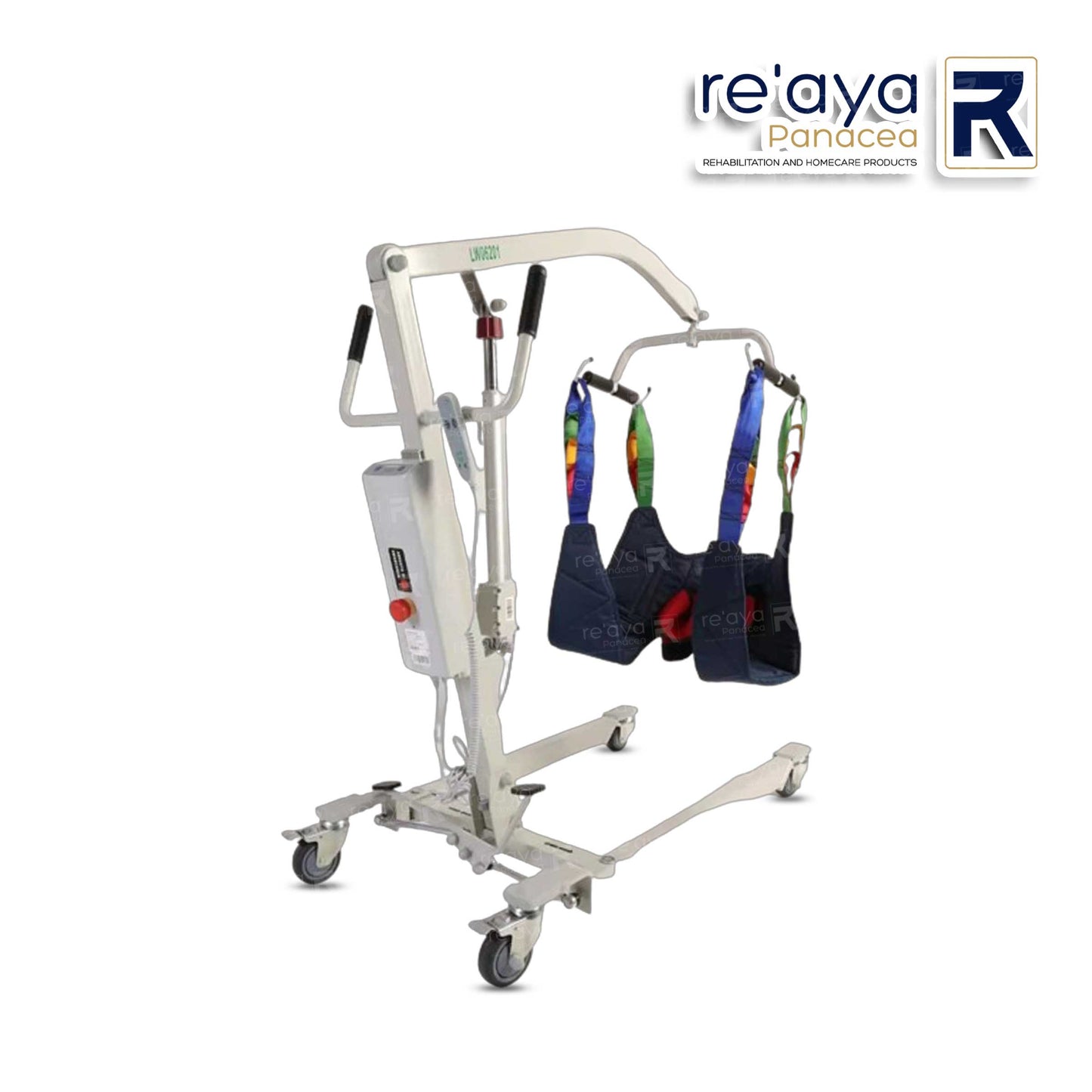

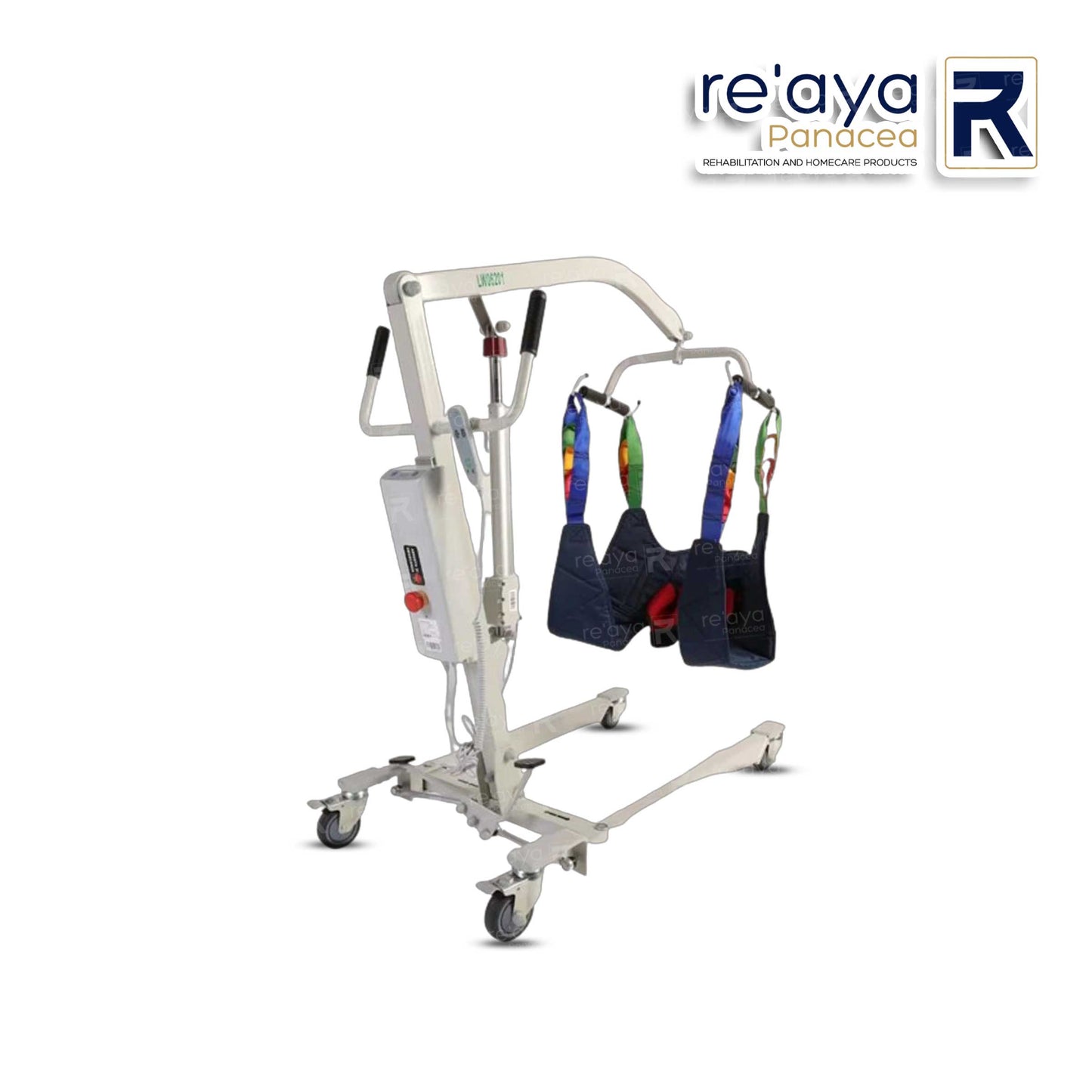

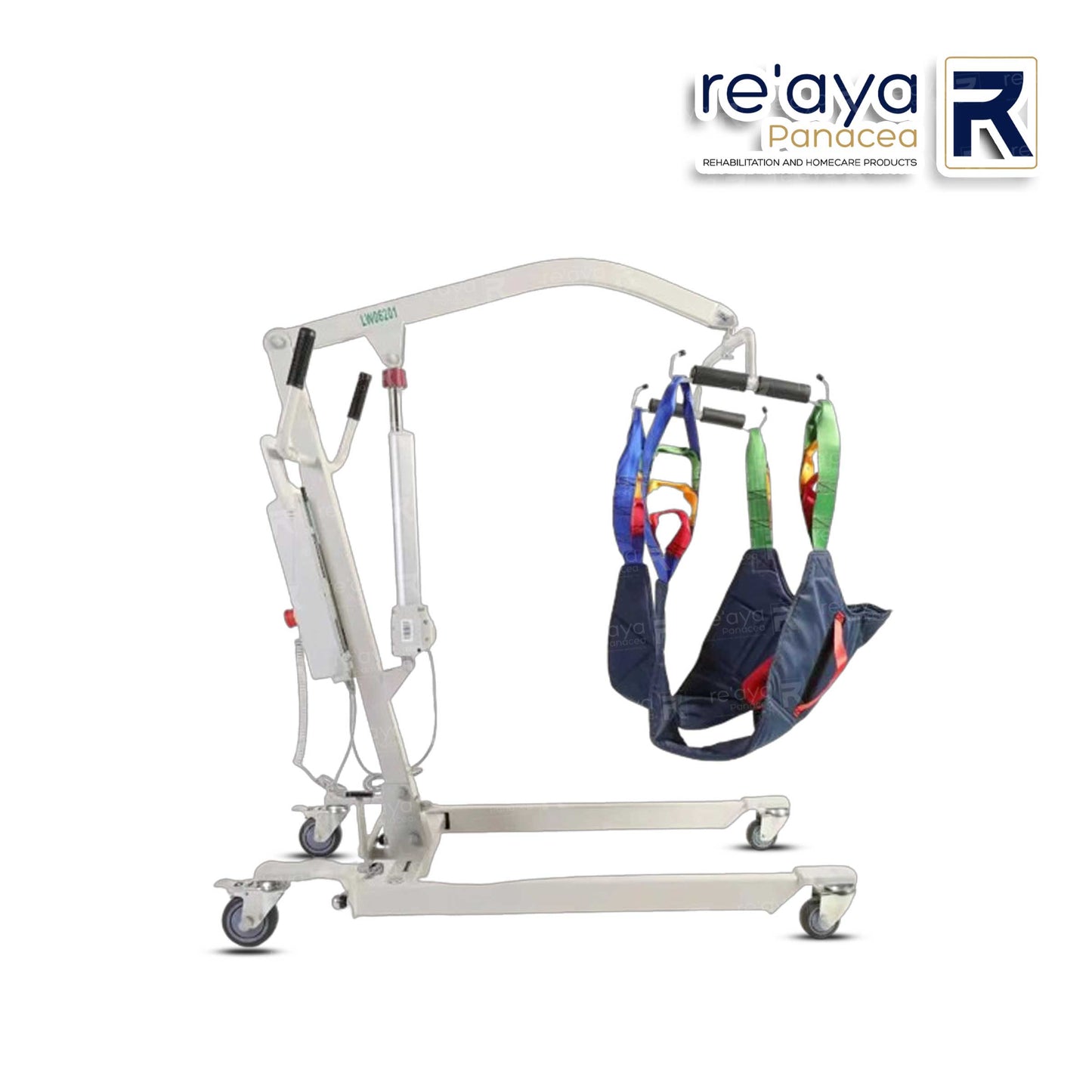

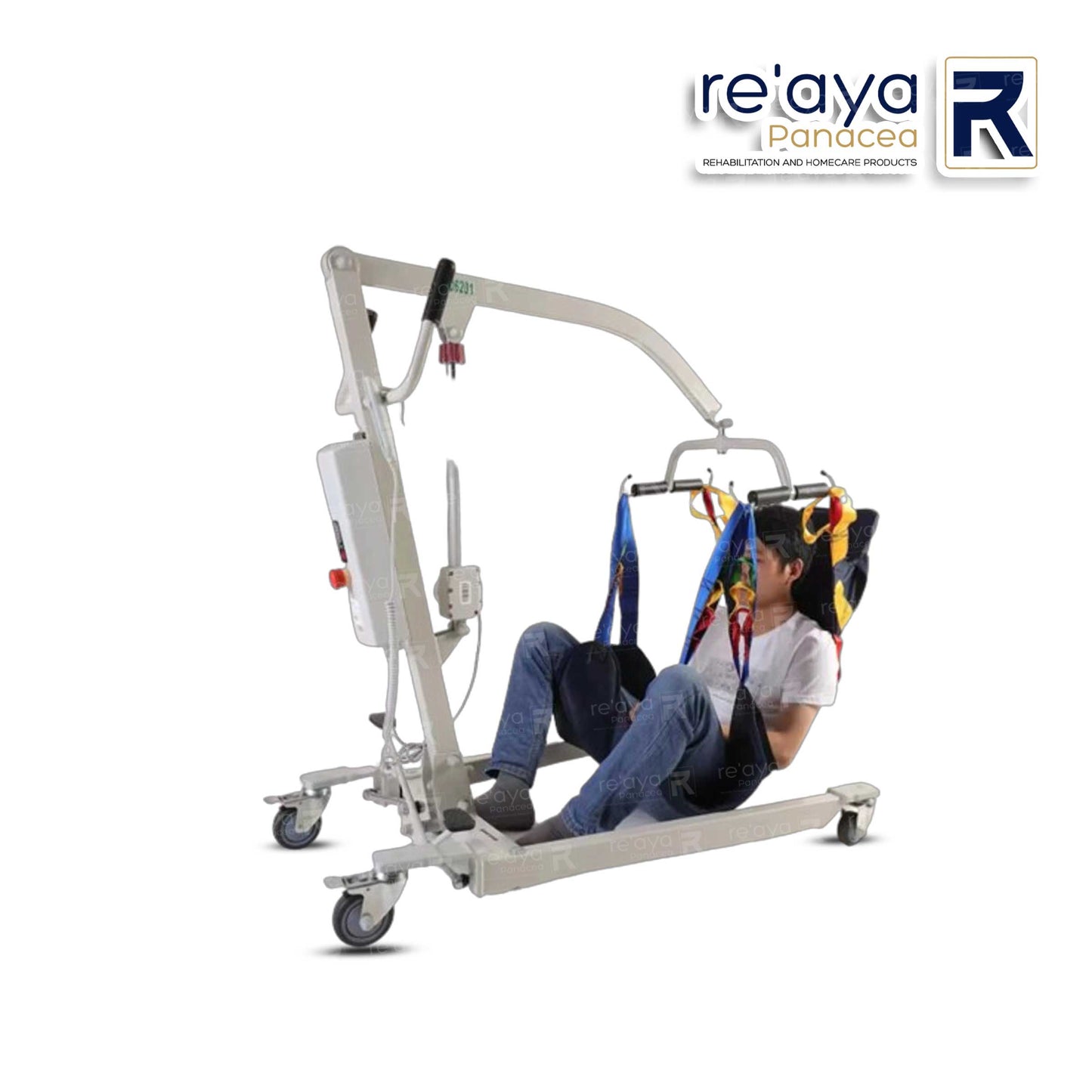

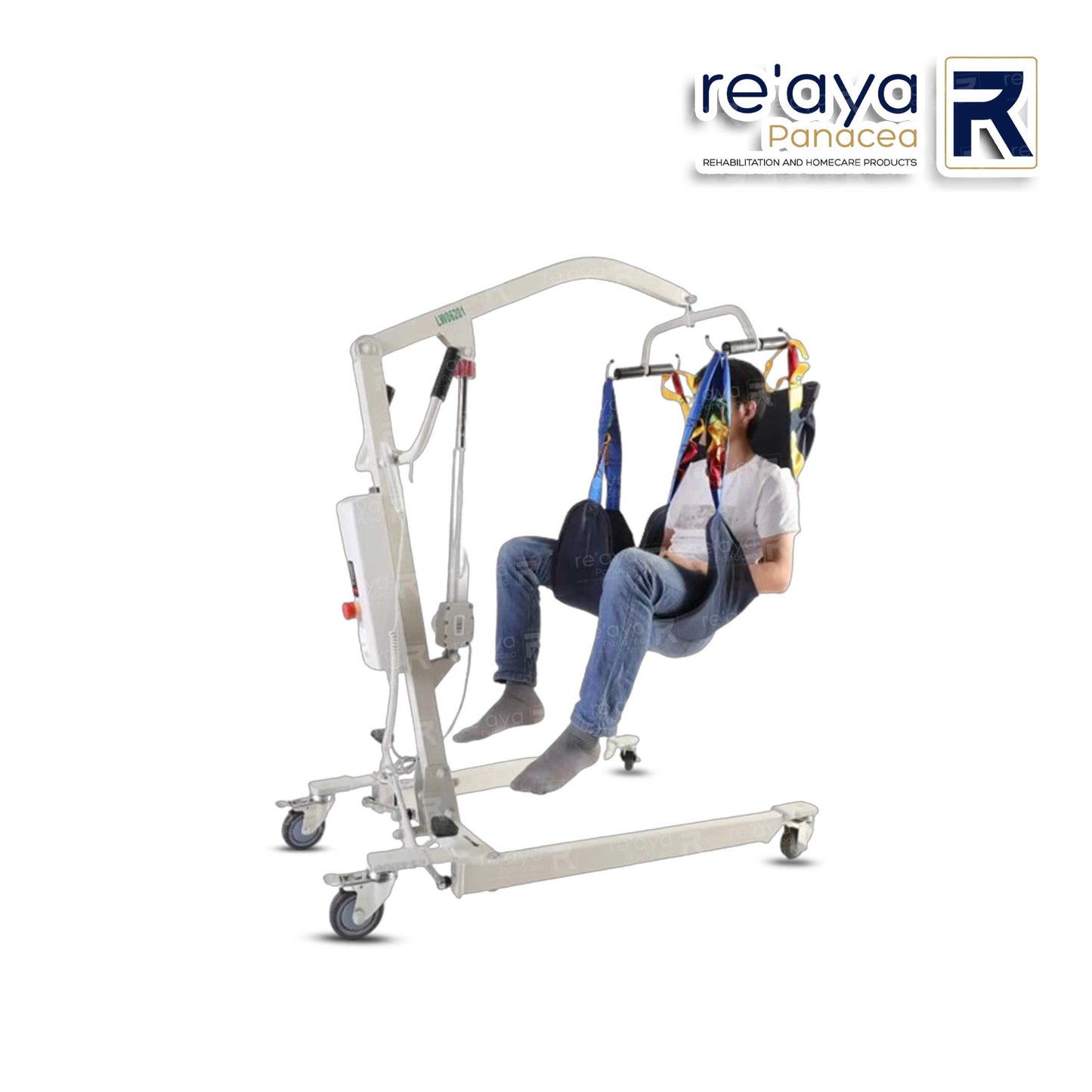

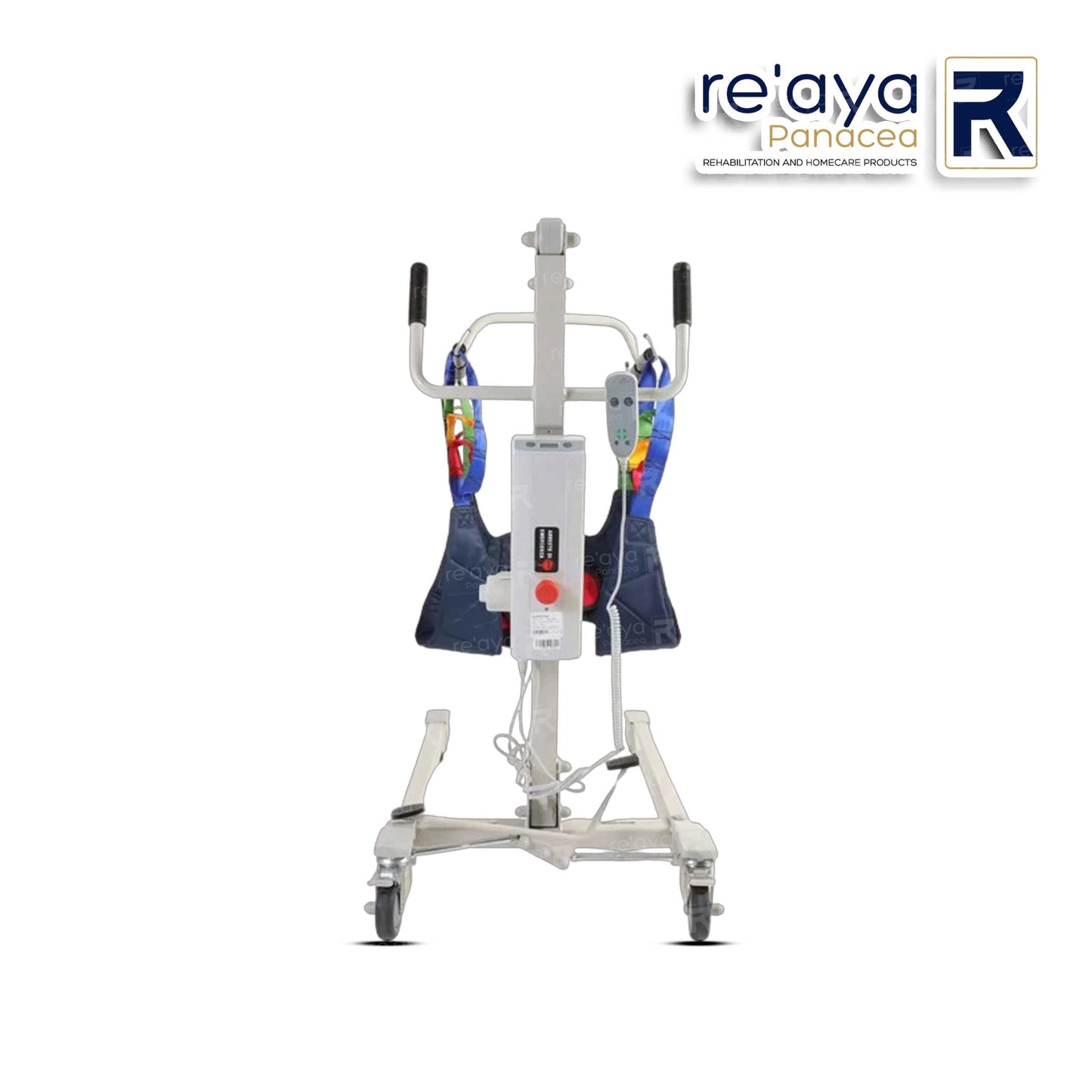

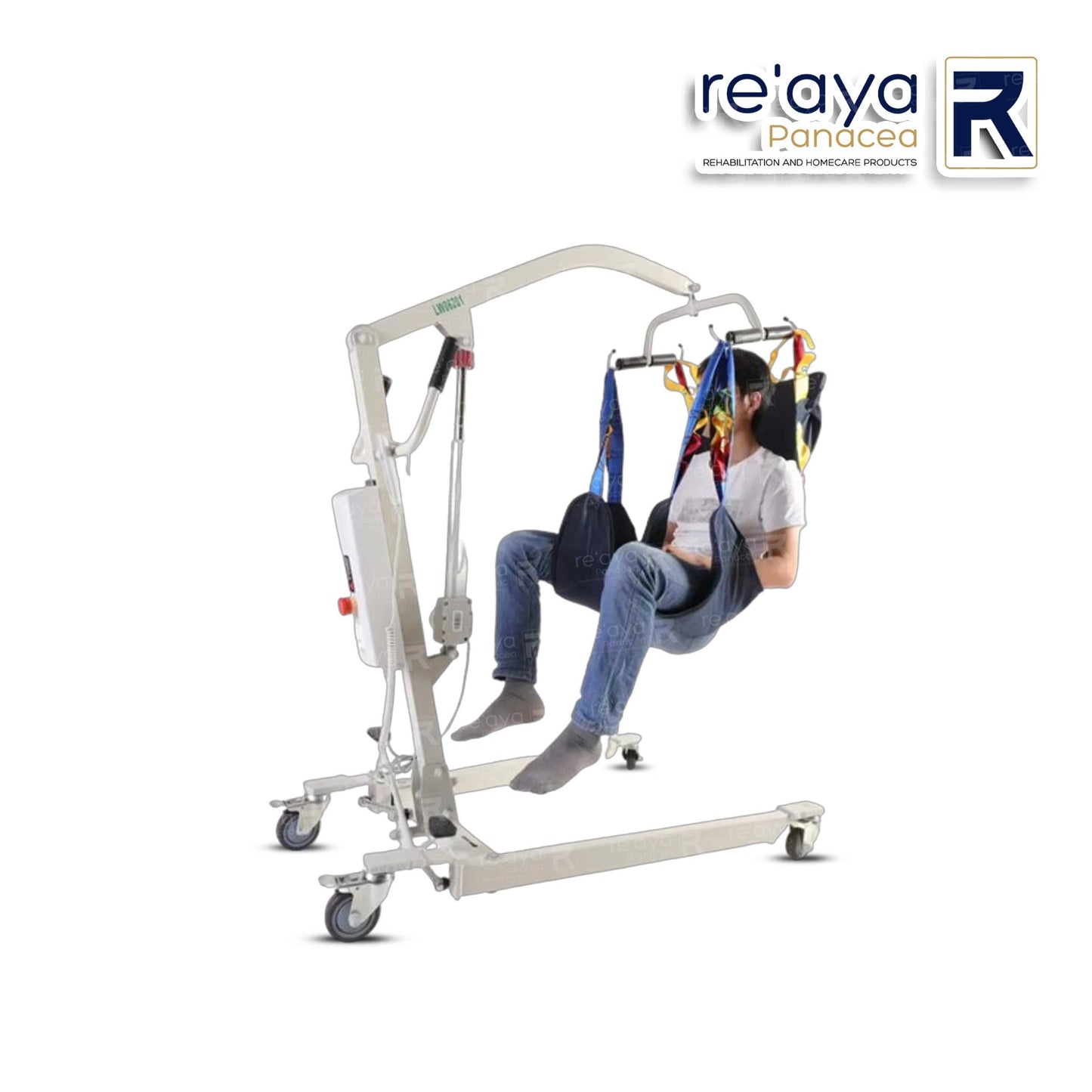

PATIENT LIFTER - STANDARD (EK06201)

The Electric Standard Patient Lifter EK06201 is designed for safe and efficient patient transfers, equipped with a Richmat motor and a weight capacity of 150kg. It features rear 4" wheels with brakes, a pedal-operated leg opening mechanism, and a simple one-function hand controller. Safety is enhanced with an emergency stop button, emergency drop device, and a backup battery. The adjustable hook height ranges from 720mm to 1730mm, providing flexibility during lifting and positioning.

• Rear 4" wheels with brake
• Pedal-operated leg opening
• One-function hand controller
• Emergency stop button
• Emergency drop device
• Backup battery included

• Arm length: 990mm
• Leg length: 1190mm
• Overall width: 590mm
• Base open width: 860mm
• Hook height: 720–1730mm
• Push handle height: 1140mm
• Base clearance: 115mm
• Weight capacity: 150kg
• Motor: Richmat
• Input voltage: 220V 50Hz

• Packing size: 116 x 68 x 25 cm
